Professional service that produces accurate, cost effective, existing building documentation. Providing a variety of outputs from a basic floor plan to a detailed 3D building model. Our service is provided in the contiguous lower 48 states, Hawaii, Alaska, All Five U.S. Territories, Canada, and Europe. Please contact us if you have a project location outside of these areas.

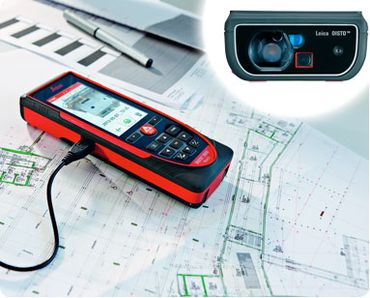

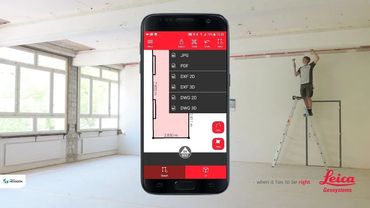

Plans are derived from laser measured data taken on-site of an existing building and then delivered to our clients in AutoCAD DWG and PDF formats.
Services can be custom tailored to fit your project specific needs. Having current accurately measured building plans is critical for any real estate owner, architect, engineer, or contractor; for calculating rentable areas, construction and remodel projects, marketing material, building operation use, and due diligence investigation for investment purchase and sales.
Pricing and Services
Pricing is calculated according to the size of the building and the scope of work requested
Typically travel expenses are included in the total project fee quoted
Please Call or E-mail us for a detailed proposal

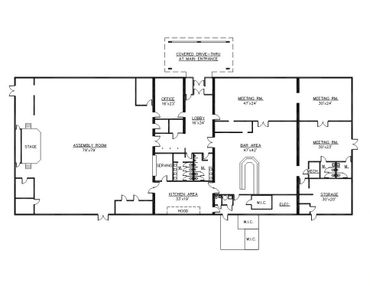

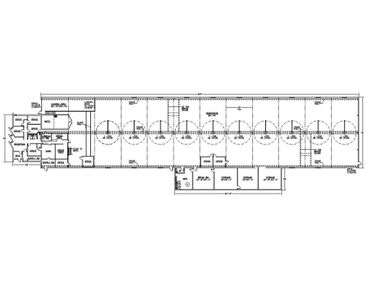

2D Floor Plans documenting all Rooms, Doors, Windows, Staircases, Elevators, Plumbing Fixtures, Interior Columns, etc.
Area calculations for material takeoffs (carpet, wood, tile, etc.)
Exterior Building Elevations
Interior Wall Elevations
Building Wall Sections
Building Cross Sections
Ceiling Plans documenting all existing finishes and ceiling elements (lights, HVAC, etc.)

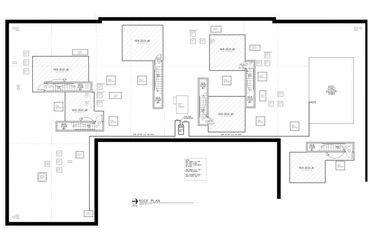

Roof Plans documenting the type of roof and roof top elements

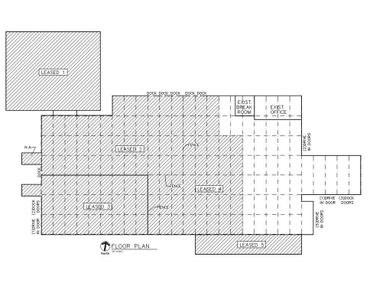

Floor Plans showing existing and available tenant areas
Measured Building Plans for Due Diligence investigation
Site Plans documenting all Structures, Drives, Storage and Parking Areas

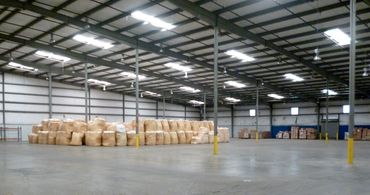

Furniture Plans, Warehouse Racking Plans, Equipment Plans, Fire Exit Plans, Dimensioned Plans, and Marketing Material Plans
3D BIM (3D Building Information Models)
Measured Building Plans delivered in AutoCAD DWG for Architects, Contractors, and Engineers; for Interior Finish, Remodel, and Addition projects
